Multi row back sealed powder packaging
Product model：CY300BF/CY600BF/CY900BF
The automatic multi row back sealing powder packaging machine is applicable to the automatic packaging of powder powder or fine powder in pharmaceutical, food, daily chemical, pesticide, hardware products and other industrial products
Such as: solid beverage, meal substitute powder, nutritional powder, flour, starch, food additives, milk powder, bean powder, protein powder, Chinese medicine powder, facial mask powder, pearl powder, coffee powder, cocoa powder, health tea powder, glucose powder, soda powder, papaya root powder, etc
Such as: solid beverage, meal substitute powder, nutritional powder, flour, starch, food additives, milk powder, bean powder, protein powder, Chinese medicine powder, facial mask powder, pearl powder, coffee powder, cocoa powder, health tea powder, glucose powder, soda powder, papaya root powder, etc
We can help you find the goods you want by phone
Machine parameters
| Model | CY300BF | CY600BF | CY900BF | |
| Lanes number | 2-4 lanes | 3-10 lanes | 4-16 lane | |
| Capacity | 20--40 / Max.20-40cycle/min/lane | |||
| Bag size | L 50-180mm W:20-70mm | L::50-180mm W:20-95mm | L::50-180mm W:20-105mm | |
| Film width&thickness | Max.300mm,0.07--0.1mm | Max.600mm,0.07--0.1mm | Max.900mm,0.07--0.1mm | |
| Measuring Method | 1.long auger;2.short auger;3.short auger with cup | |||
| Sealing type | Back sealing/stick bag | Back sealing/stick bag | Back sealing/stick bag | |
| Cutting type | 1. Straight cutting;2. Zig zag cutting 3. Round cutting;4. Die-cut | |||
| Power supply | 1N+PE/50HZ/AC220V/380V/3.5kw | 1N+PE/50HZ/AC220V/380V/5.5kw | 1N+PE/50HZ/AC220V/380V/7.5kw | |
| Air consumption | 0.8 MPA 0.8m3/min | 0.8 MPA 0.8m3/min | 0.8 MPA 0.8m3/min | |
| Dimension | 1385*918*2005mm | 1685*1300*2005mm | 1700*1600*2500mm | |
| Weight | 400kg | 600kg | 950kg | |
Machine details
Machine video introduction

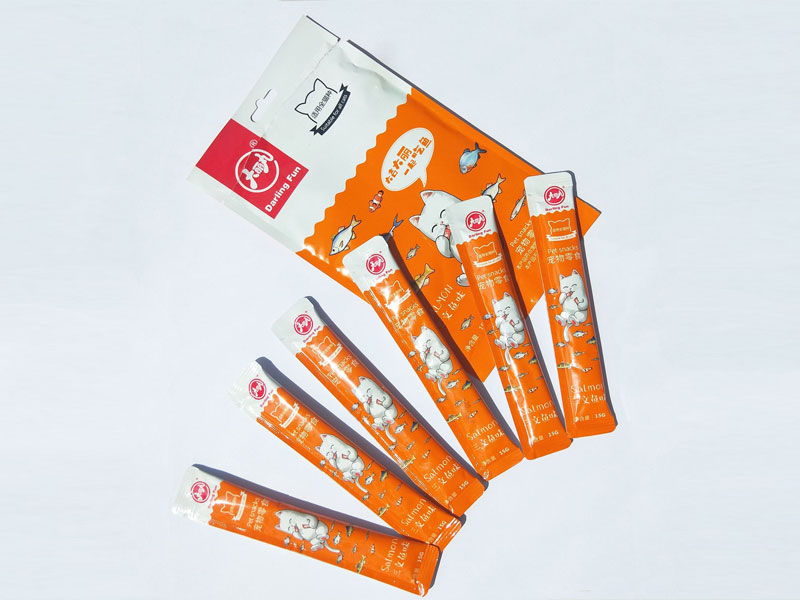

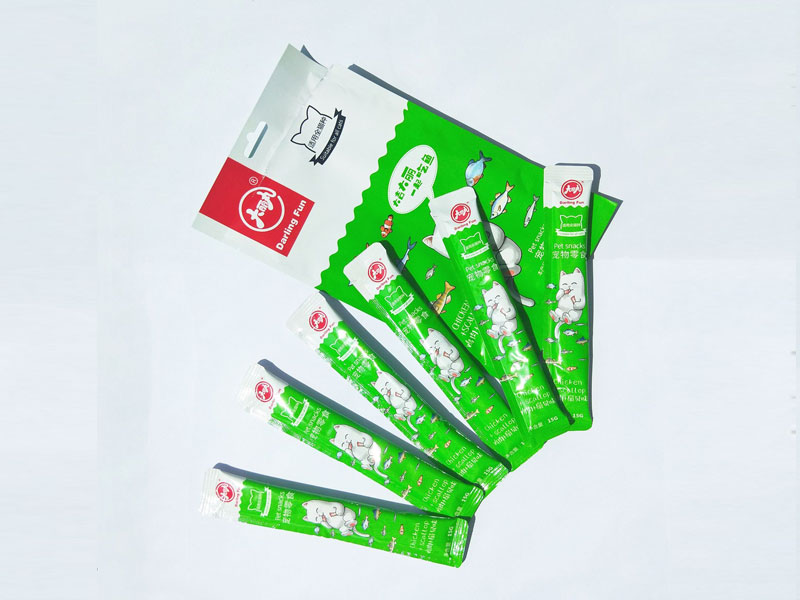

Effect of packaging sample bag
