Product model：CY300BF/CY600BF/CY900BF
Lanes number：2-16 lanes
Bag size：L：50-180mm W：20-105mm
Film width&thickness：Max.300-900mm,0.07--0.1mm
Capacity：Max.20-40cycle/min/lane
Measuring Method：long auger、short auger、short auger with cup
Power supply：50HZ/AC220V/380V/3.5-7.5kw
The meal powder packaging machine can automatically and completely measure, bag making, filling, sealing, cutting, printing date and other processes. It is suitable for packaging Rice noodles, coffee powder, soy milk powder, spice powder, seasoning powder, curry powder, jelly powder, walnut powder, soda powder, fermentation powder, medical powder, maca powder, health powder and other powder products with poor liquidity. Using high-precision integrated rolling heat sealing roller as the sealing mold. Multi row bag form, fast packaging speed, and flat bag shape, exquisite and beautiful, with high packaging efficiency.
We can help you find the goods you want by phone
Video presentation

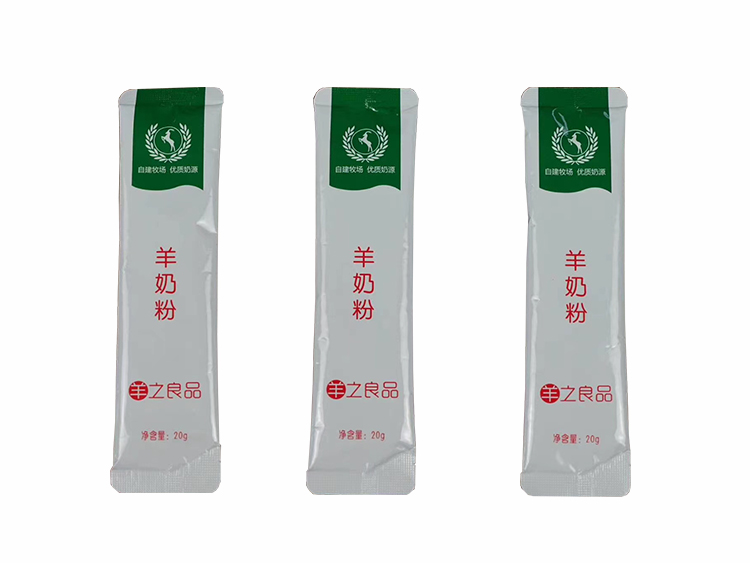

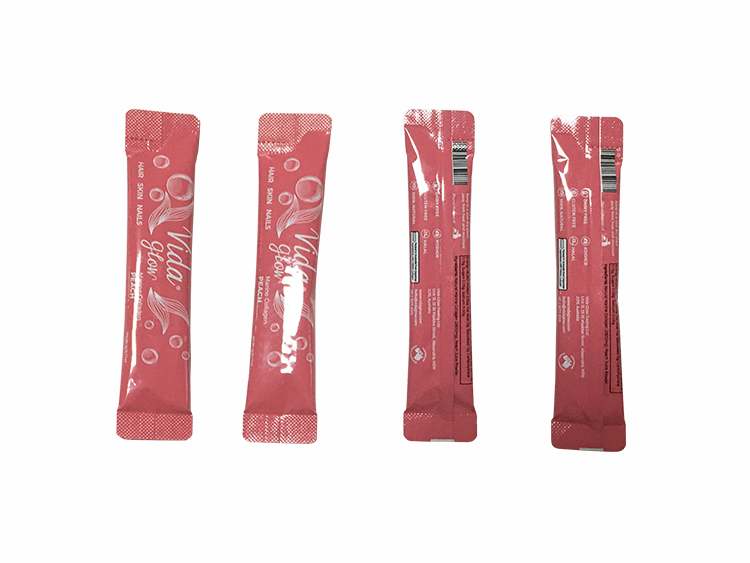

Packaging sample bag
Machine parameters
| Model | CY300BF | CY600BF | CY900BF | |
| Lanes number | 2-4 lanes | 3-10 lanes | 4-16 lane | |
| Capacity | 20--40 /Max.20-40cycle/min/lane | |||
| Bag size | L：50-180mm W：20-70mm | L：50-180mm W：20-95mm | L：50-180mm W：20-105mm | |
| Film width&thickness | Max.300mm,0.07--0.1mm | Max.600mm,0.07--0.1mm | Max.900mm,0.07--0.1mm | |
| Measuring Method | 1、long auger；2、short auger；3、short auger with cup | |||
| Sealing type | Back sealing/stick bag | Back sealing/stick bag | Back sealing/stick bag | |
| Cutting type | 1、平口 Straight cutting；2、Zig zag cutting 3、Round cutting；4、Die-cut | |||
| Power supply | 1N+PE/50HZ/AC220V/380V/3.5kw | 1N+PE/50HZ/AC220V/380V/5.5kw | 1N+PE/50HZ/AC220V/380V/7.5kw | |
| Air consumption | 0.8 MPA 0.8m3/min | 0.8 MPA 0.8m3/min | 0.8 MPA 0.8m3/min | |
| Dimension | 1385*918*2005mm | 1685*1300*2005mm | 1700*1600*2500mm | |
| Weight | 400kg | 600kg | 950kg | |
Detail drawing
